OMCL-AC240TN

No metal coating
Resonance Frequency (F): 70 kHz Spring Constant (K): 2 N/m
OMCL-AC240TS
OMCL-AC240TS

The new OMCL-AC240 series cantilevers with ‘New Concept Chip’
designed for AC mode AFM in air to observe topography and viscoelasticity of soft samples.

OUTSTANDING FEATURES

  • 1. Small spring constant for the measurements of soft samples
  • 2. Measuring surface potential with low resistivity silicon

(Common features in new silicon cantilever series)

  • 3. Ideally point terminated probe
  • 4. Acclaimed ‘TipView’ structure
  • 5. Reflex side aluminum coating
  • 6. Ease in chip handling: ‘New concept chip’
  • 7. Packaging: Pre-separated chips

MORE ABOUT NEW OMCL-AC240 SERIES

1. Small spring constant for the measurements of soft samples

Spring constant of 2 N/m(Typ.) is the smallest in our silicon cantilevers for AC mode, suitable for observing surface topography and viscoelasticity of soft samples.

Mechanical Properties of OMCL-AC240TS-R3

2. Measuring surface potential with low resistivity silicon

Cantilever base material employs N-type doped silicon with a surface resistance of 0.01-0.02 Ω · cm (1/200th the surface resistance of our other base materials). This can be achieved to use for measuring surface potential and other applications.

3. Ideally point terminated probe

The apex of the tetrahedral probe is ideally point terminated.
The tetrahedral probe shows good symmetry viewed from the front. Considering the geometric feature, choose the fast scan (X) direction. Check Scan line profile and enlarged view of the tip apex.

Patterned Sapphire Substrate 9 µm x 9 µm
Patterned Sapphire Substrate 9 µm x 9 µm

Patterned Sapphire Substrate 9 µm x 9 µm
Sample, courtesy of MAXIS, Korea

4. Acclaimed ‘TipView’ structure

The probe can be easily positioned at the exact point of your interest due to ‘TipView’ structure.
The probe is located at the exact end of the cantilever so that the probe apex is not obscured during optical observations.

Front (probe apex)
Front
Side

5. Reflex side aluminum coating

Thin aluminum film with the thickness of 100 nm is coated on the cantilever for reflecting light from the deflection sensor in the AFM equipment. High reflex for high S/N sensing can be expected.

6. Ease in chip handling: ‘New concept chip’

The ideally vertical side-walls of the chip make tweezing easy and eliminate problems with chipping and debris.

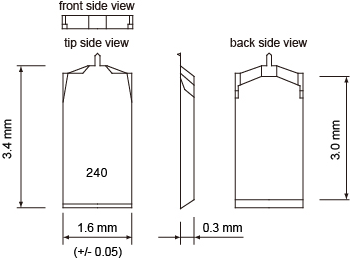

design of AC240 / lever and chip

7. Packaging: Pre-separated chips

Silicon Cantilevers, model OMCL-ACxxxxx-R3: available with 100 pre-separated chips.
Silicon Cantilevers, model OMCL-ACxxxxx-C3: available with 24 pre-separated chips.

100 chips/box
100 chips/box
OMCL-AC240TS-R3 / OMCL-AC240TN-R3
24 chips/box
24 chips/box
OMCL-AC240TS-C3 / OMCL-AC240TN-C3
